Hot Product

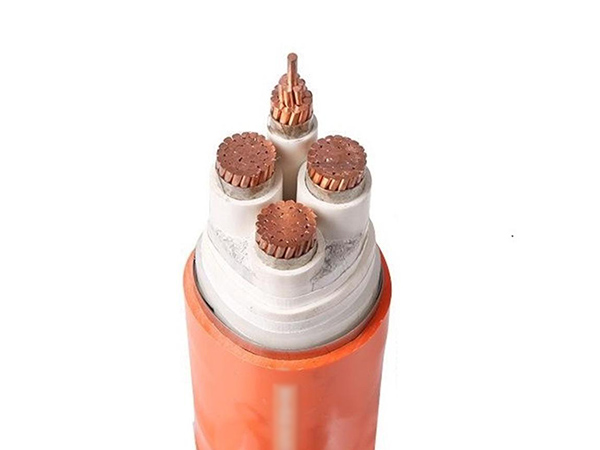

BBTRZ cable
BBTRZ cable, fully known as flexible fire-resistant copper-sheathed inorganic mineral insulated cable, is a high-performance fire-resistant cable. Structurally, it consists of a copper conductor, inorganic mineral insulation material, a longitudinally welded copper tape sheath, and an outer sheath. Among them, the copper conductor has excellent electrical conductivity, ensuring efficient and stable power transmission; the inorganic mineral insulation material is the key to achieving fire resistance. This material is non-combustible and heat-resistant, with an extremely high melting point. In the event of a fire, even when exposed to high temperatures of 950℃ – 1000℃, it can still maintain stable insulation

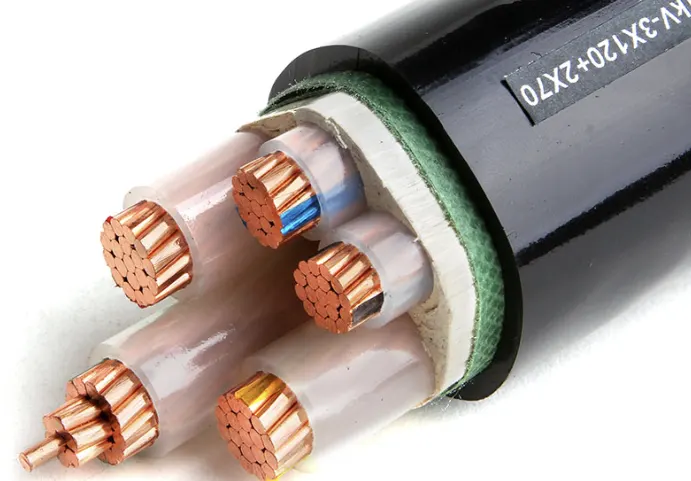

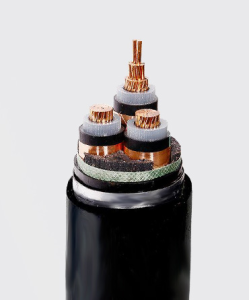

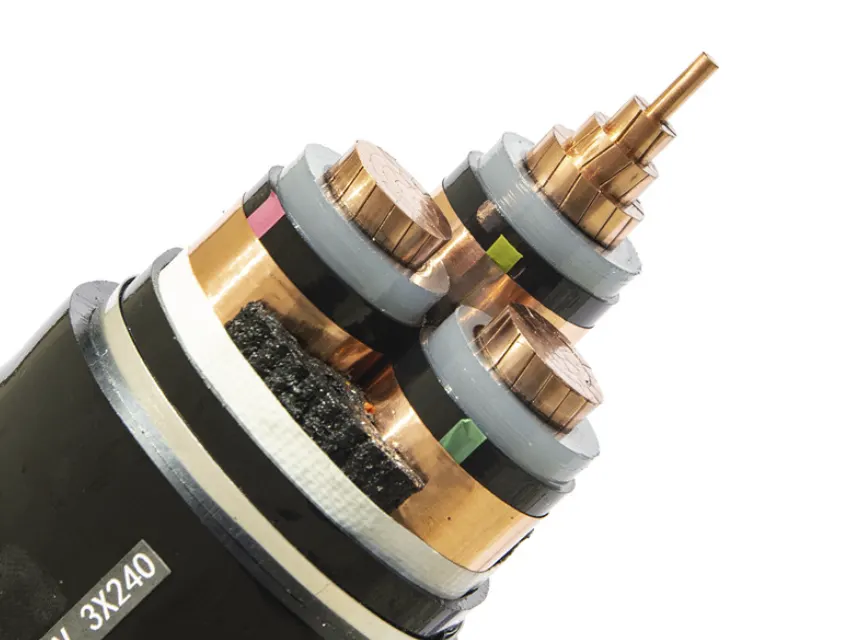

YJV cable
YJV power cables (copper/aluminum core cross-linked polyethylene insulated polyvinyl chloride sheathed power cables) are wire products used in power transmission and distribution systems, complying with national standards such as GB12706.3-91. They cover rated voltages from 0.6/1kV to 26/35kV and are suitable for urban power grids, industrial and mining power supply, underwater power transmission, and other applications. The insulation layer is made of cross-linked polyethylene material, while the sheath is polyvinyl chloride. The long-term operating temperature does not exceed 90°C, and the short-circuit withstand temperature reaches 250°C (lasting ≤5 seconds). The main models include non-armored (YJV/YJLV), steel tape armored (YJV22/YJLV22), and fine steel wire armored (YJV32/YJLV32), suitable for indoor laying, underground burial, and high-drop areas, respectively. During installation, the ambient temperature must be ≥0°C, and the bending radius should be no less than 15 times the outer diameter for single-core or 10 times for multi-core. The structure includes the conductor, insulation layer, filler layer, shielding layer (for high-voltage models), and sheath layer, offering resistance to chemical corrosion, mechanical protection, and high insulation performance.

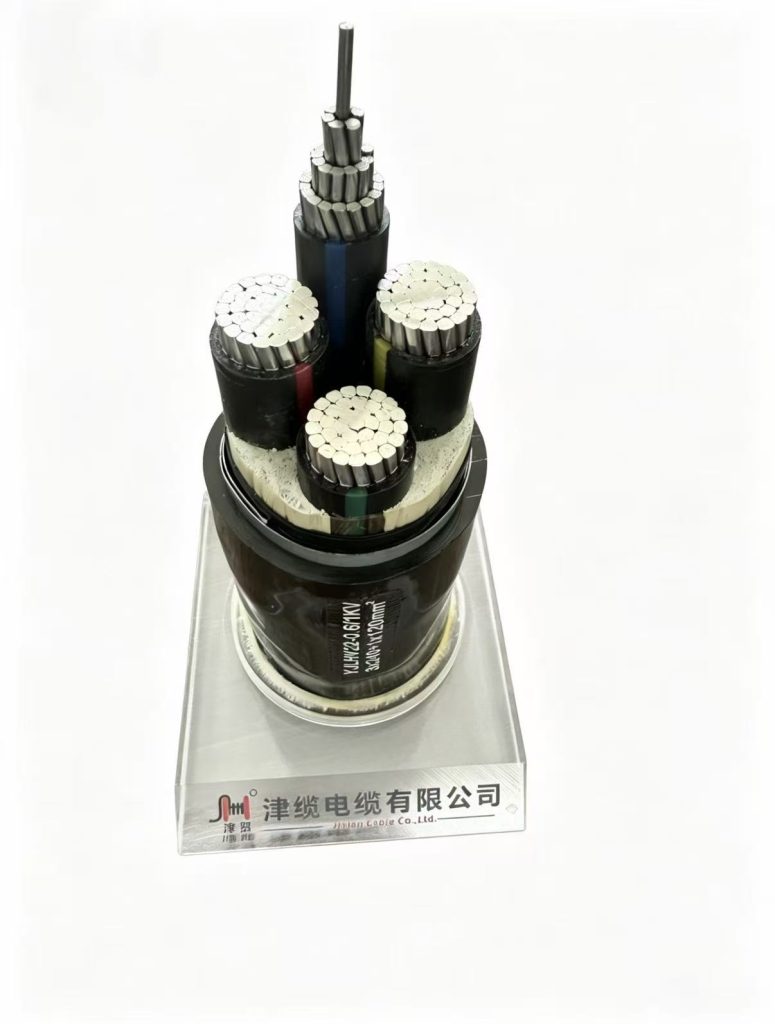

YJLV cable
YJLV stands for Aluminum-core XLPE Insulated PVC Sheathed Power Cable.
It is widely used in low-voltage power distribution projects such as municipal power grids, residential districts and construction sites.
Made of aluminum conductor, it costs less and weighs much lighter than copper-core YJV cable. Its cross-linked polyethylene insulation can sustain long-term working temperature up to 90℃ with good anti-corrosion performance.
Compared with copper cable of the same cross-section, its current-carrying capacity is lower, so larger size is required in selection, and special aluminum terminals are needed for connection to avoid oxidation.
Ordinary YJLV is laid on cable tray or overhead; armored type YJLV22 with steel tape can be directly buried underground.
About Us

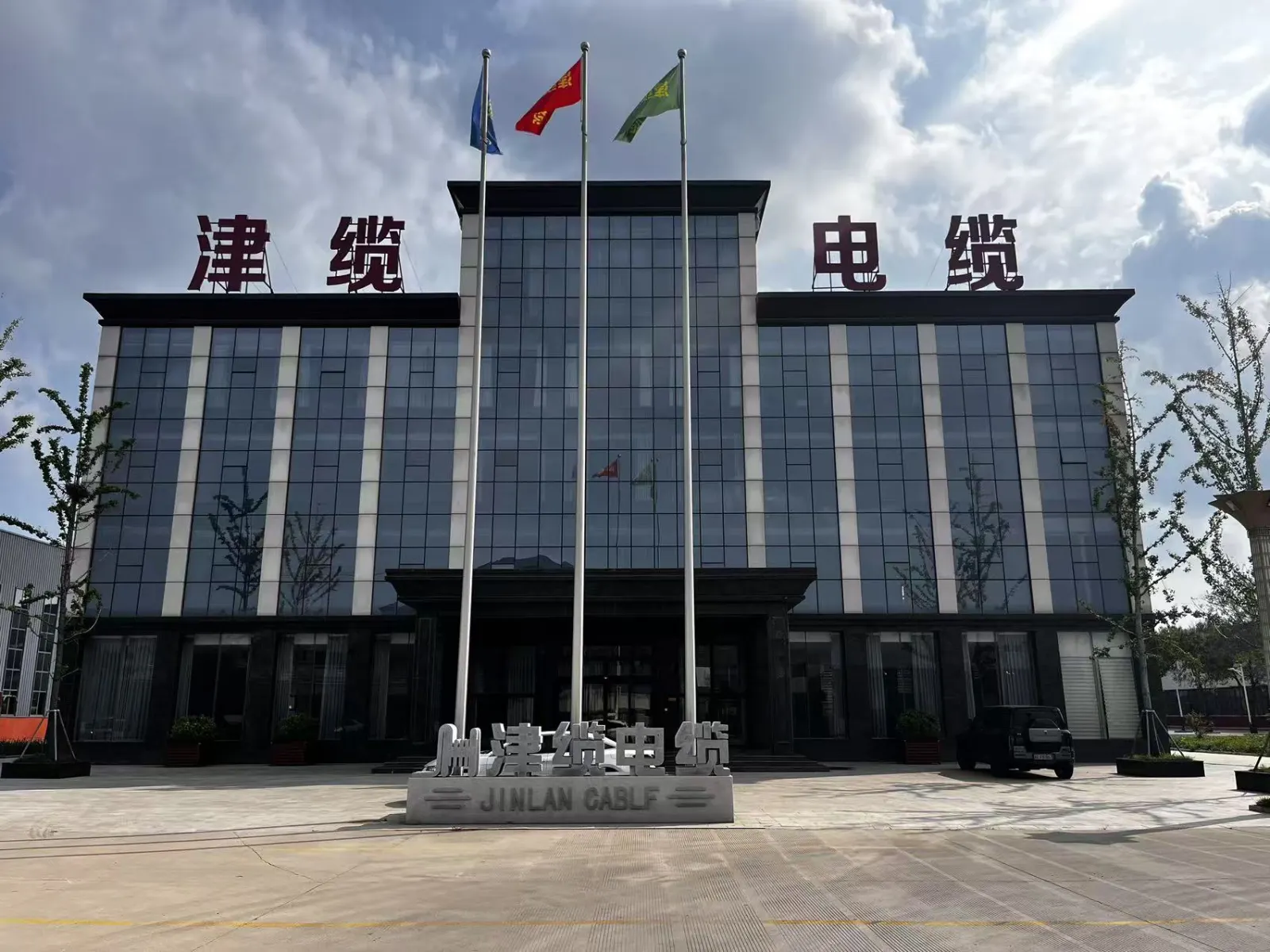

Jinlan Cable Co., Ltd., located in Xiaoxizhuang, known as the “First Village of China’s Wire and Cable Industry,” is 70 kilometers from Shijiazhuang, the capital of Hebei Province, and 20 kilometers from the famous Zhaozhou Bridge, which is renowned both domestically and internationally. The company is adjacent to the Qingyin Expressway, boasting beautiful scenery and convenient transportation,

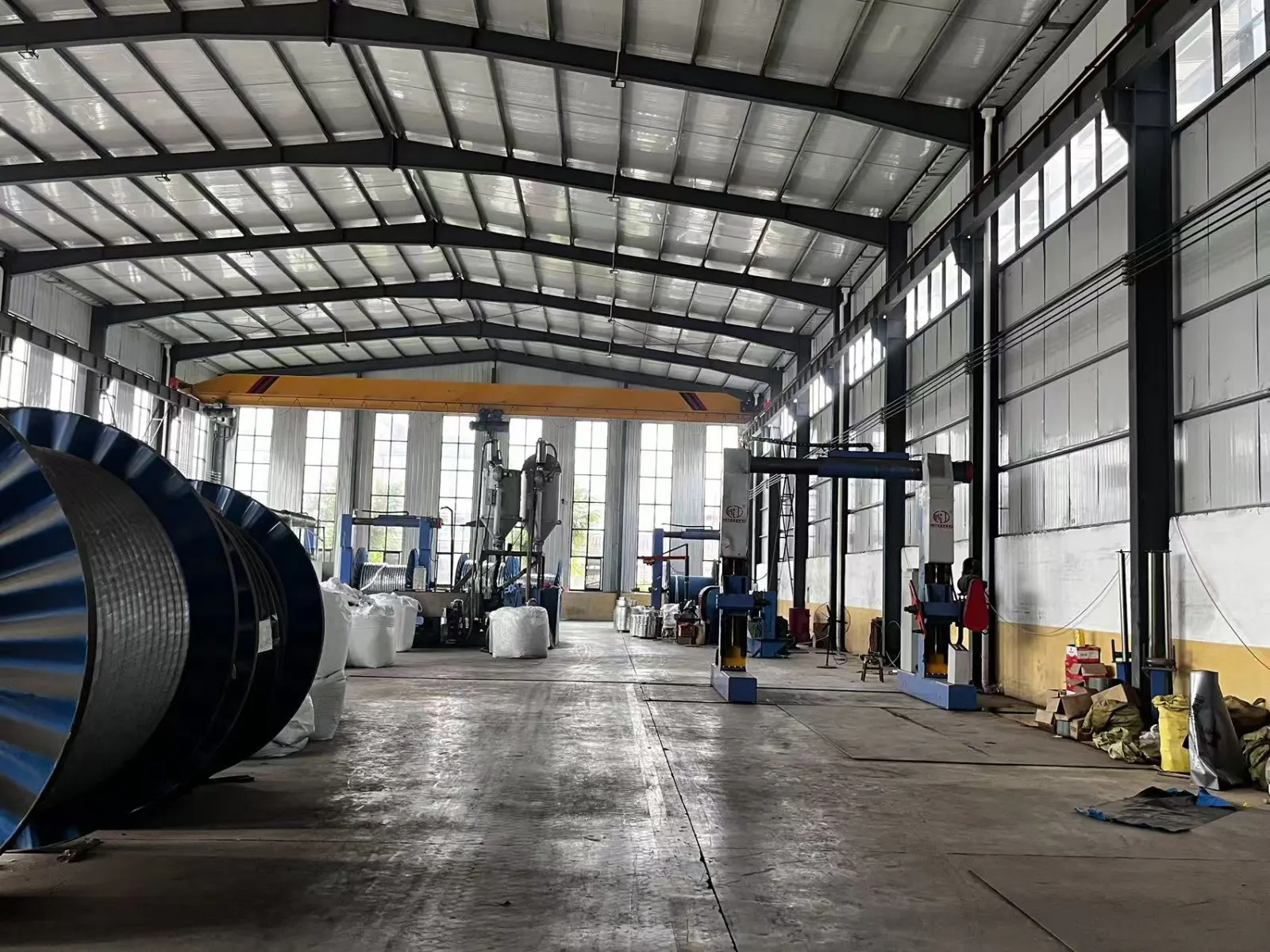

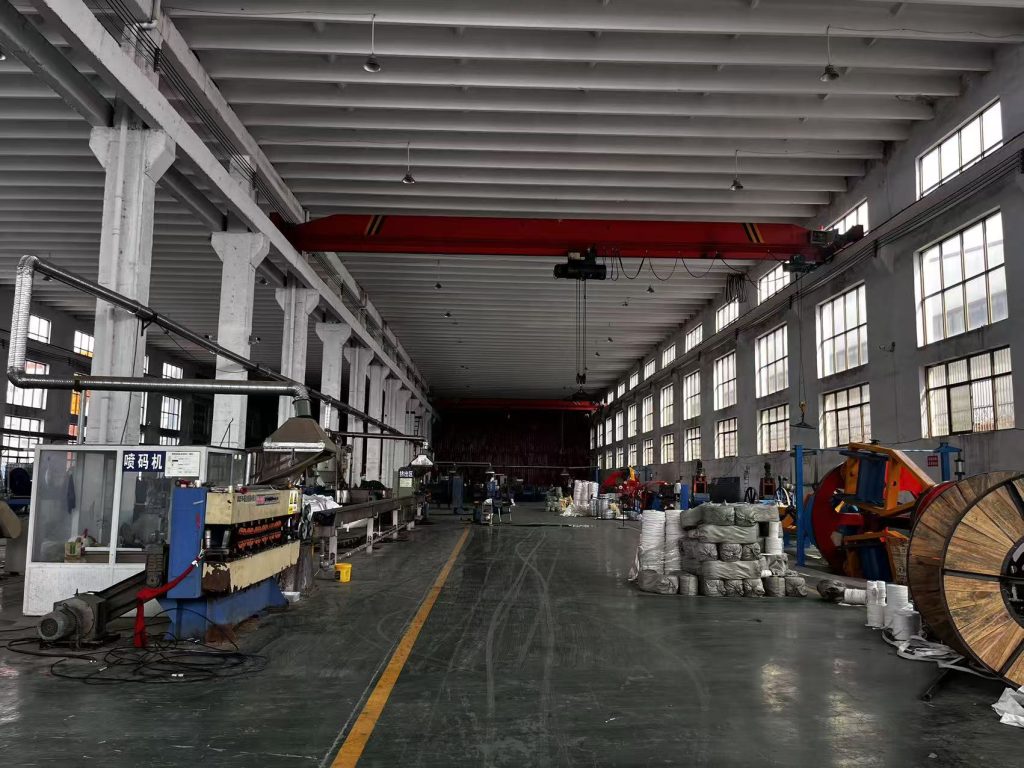

The company covers an area of over 25,600 square meters with a construction area of 6,500 square meters. It has a registered capital of 116 million yuan, fixed assets exceeding 73 million yuan, and an annual output value of over 250 million yuan. Equipped with first-class domestic production and testing facilities, it currently employs more than 200 staff members, 40% of whom hold college degrees or higher, including those engaged in cable design and manufacturing
The company employs 28 professional and senior engineers specializing in processes, insulation materials, electronics and electrical engineering, and mechanical engineering. Its main products include power cables, control cables, overhead cables, bare wires, sheathed wires, computer cables, flame-retardant and fire-resistant cables, among others. The company has been honored with multiple accolades, such as “Integrity Enterprise of Hebei Province,” “Director Unit of the Cable Industry Association,” and “Contract-Fulfillment and Credit-Keeping Enterprise of Hebei Province.” With a comprehensive ISO 9001 international quality system as its guarantee, the company achieves a 100% product qualification rate. Its products are widely sold across the country and have been extensively applied in industries such as power, petroleum, chemical, mining, construction, metallurgy, shipbuilding, railways, and aviation.
Keeping pace with the times and benefiting from the spring breeze of reform, Jincable Cable will continue to uphold its business philosophy of “forging character through high quality, producing excellence through high standards, expanding markets through credibility, and winning customers through service.” With unity, integrity, diligence, and innovation, Jincable Cable will repay its old and new clients with cutting-edge technology, premium products, reasonable prices, and comprehensive services. Together, Jincable Cable will advance hand in hand with you to create a brighter tomorrow!
